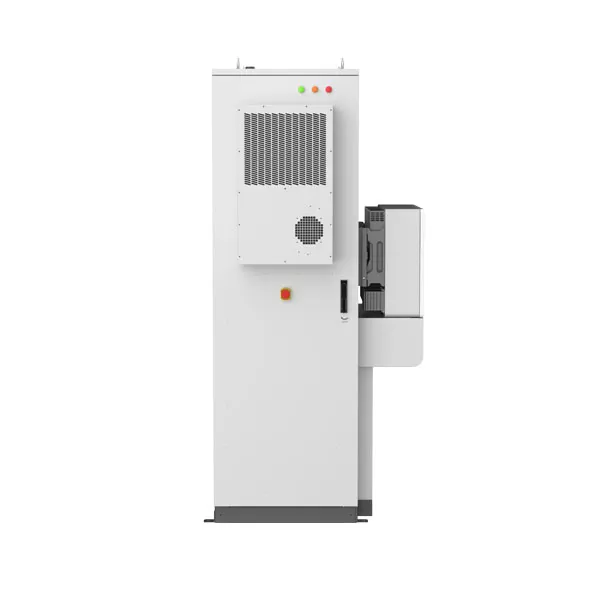

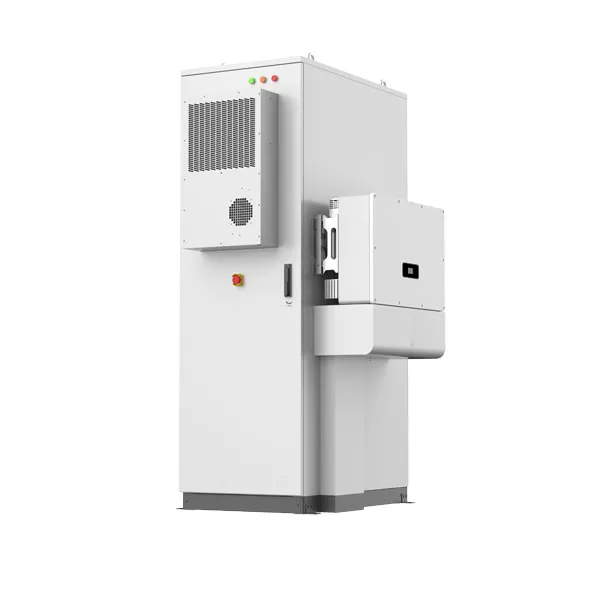

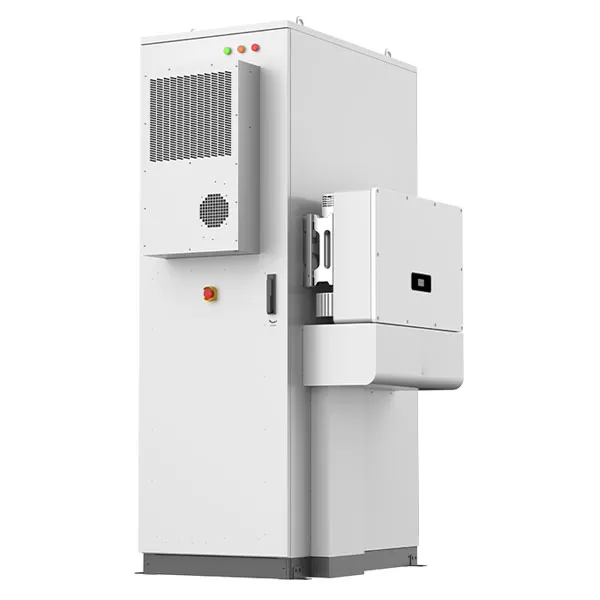

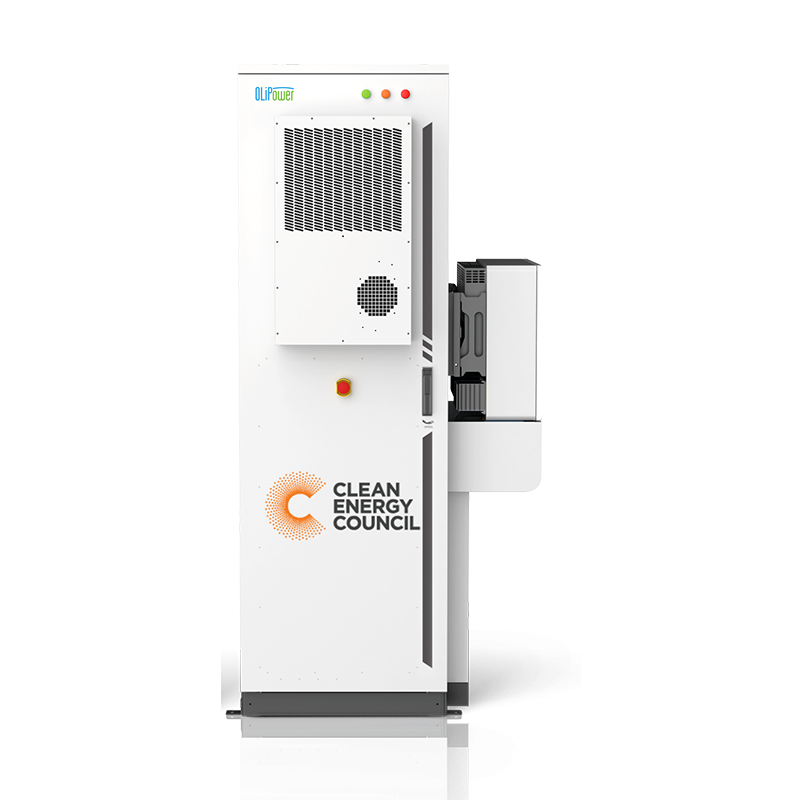

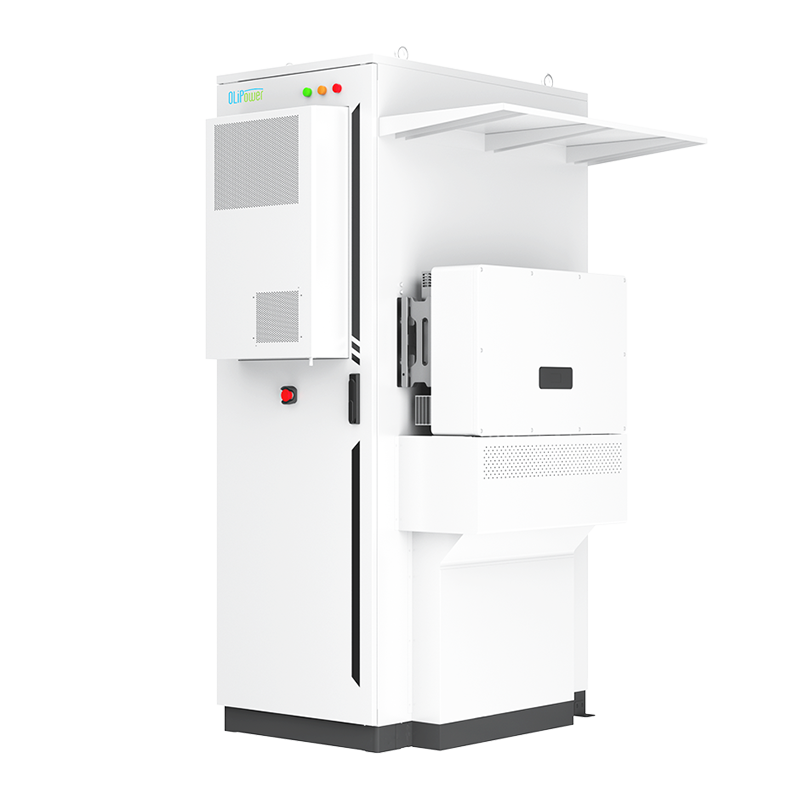

Name: 50kW/111kWh Hybrid ESS Cabinet
Brand: OLiPower
Availability: InStock

The OLP-HEIB air-cooled hybrid energy storage all-in-one series cabinets are meticulously developed by OLPower,which is experienced in power electronics, automation, IoT, and AI technologies. The OLP-HEIB are on/off-grid energy storage products designed for areas without electricity or with insufficient power supply. They can work with PV systems like generators to form an intelligent microgrid, with functions and peak shaving, backup power, peak & frequency regulation, transformer expanding, and smoothing renewable energy fluctuations, providing users with safe, reliable, economical,and efficient green electricity.

Contact Us Datasheet Brochure

Super Safety

Self-developed BMS, EMS, and cloud platform to achieve three-level electrical protection of "Pack -Cluster -Cabinet".
Comprehensive fire detection and multiple fire protection. The entire cabinet, detected by combustible gas, smoke,temperature, and waterlogging sensor,is equipped with aerosol fire extinguishing system, and water sprinkler system.
Al data diagnosis provides early warnings based on the trend change rate of operation data.

Flexible Deployment

Support to be installed by hoisting and forklift, and available for side-by-side and back-to-back deployment.
Flexible expansion capacity, supporting up to 10 DC units operating in parallel and 4 AC units operating in parallel.
Pre-installation and commissioning in the factory, plug-and-play on-site.

Intelligent & Efficient Operation

Designed with high energy density to save more space.
Form an intelligent microgrid with Pv & generator to provide a green,efficient, and uninterrupted power supply
Support seamless switching between on-grid and off-grid mode within 20 milliseconds, ensuring the stable operation of the load.

Smart Maintenance

Providing the function of demand control, anti-backflow and transformer overload protection to make the on-grid operating safely.
Providing all-time cloud monitoring, remote configuration, and OTA to keep the system in the best condition.

Specifications

Specifications of 50kW/111kWh Hybrid ESS Cabinet

Model		OLP-HEIB-V541_E111_P50-AO
Battery System	Cell Type	LFP
	Cell Parameter	3.2V/26Ah
	Cell Configuration	1P16S
	Rated Energy	11kWh
	Rated Voltage	54.56V
	Voltage Range	47.0 ~ 61.2V
	Rated Current	10A
	Max. Current	20A
PV Input	Max. Input Power	75kW
	Start-up Voltage	135V
	MPPT Voltage Range	200 ~ 950V
	Numbers of MPPT	4
	Numbers of DC inputs per MPPT	1
	Max. Input Current	30A
On-grid	Rated Power	50kW
	Rated Voltage	3L/N/PE, 220/380V; 120/240V; 240/415V
	Max. Current	82A
	Frequency	50/60Hz
	Power Factor	0.8leading ~ 0.8lagging
	Harmonic	<3% @ Rated Power
Off-Grid	Rated Power	50kW
	Rated Voltage	3L/N/PE, 220/380V; 120/240V; 240/415V
	Max. Current	82A
	Frequency	50/60Hz
	On/Off Grid Switch Time	<20ms
	Harmonic	<3% @ linear load
System Parameters	Thermal Management System	Air-conditioner
	Fire Suppression System	Heat/Smoke Detector, Aerosol
	Communication	LAN/WiFi/4G
	Generator Connection	Supported, Multifunction Dry Contact Relay
	Security Protection	Access Control System, Waterlogging Sensor, Fire Protection System

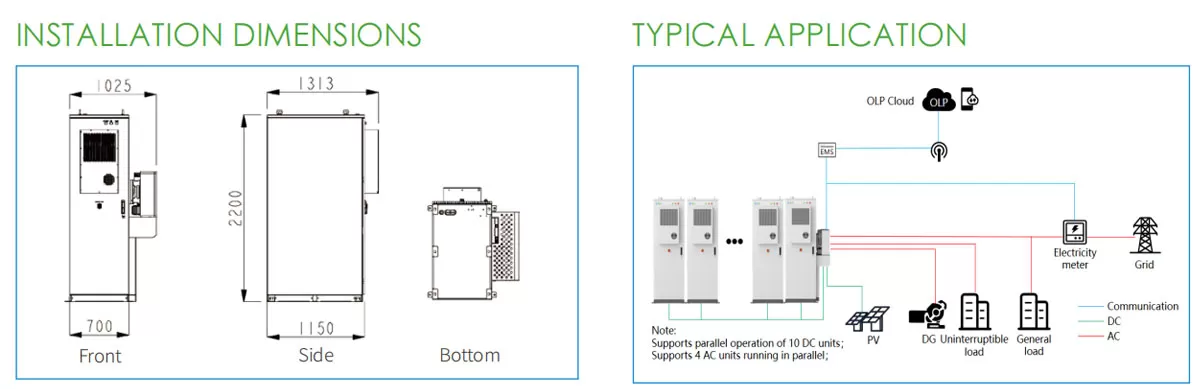

	Dimension (WDH)	Cabinet: 70013132200(mm); Hybrid Storage Inverter: 760290900(mm)
	Weight	About 1700kg
	IP Rating	Cabinet:IP54; Hybrid Storage Inverter:IP55
	Operating Temperature	-20 ~ 50℃
	Humidity	0~95%RH (No condensation)
	Latitude	≤3000m
	Certification	UN38.3, IEC62619, IEC61000
