Fuel Savings, Lower Operating Costs
The EMS keeps the diesel engine operating at its optimal efficiency point, avoiding low‑load, high‑consumption conditions. This reduces fuel usage by over 30%, significantly cutting operational expenses.
Enhanced System Performance

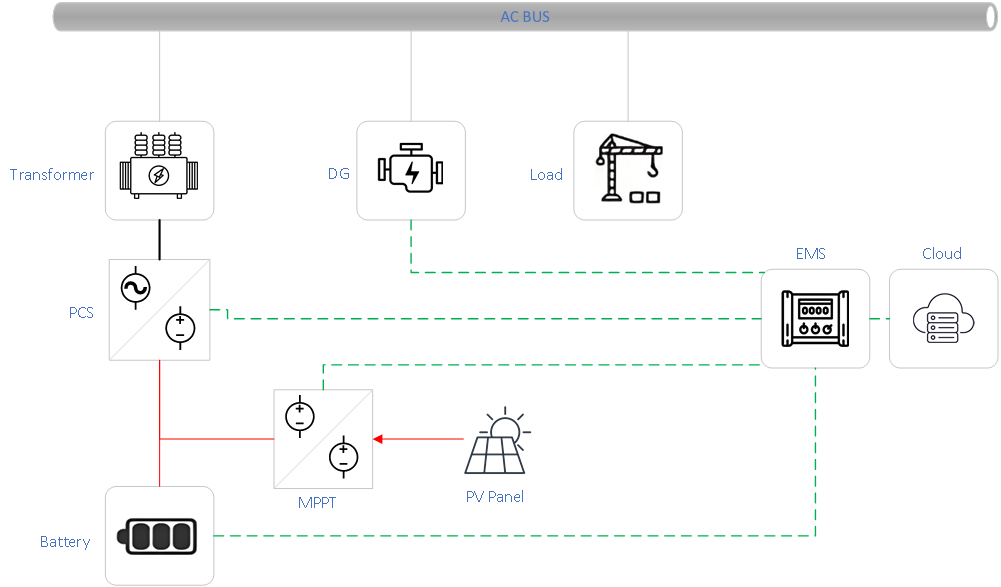

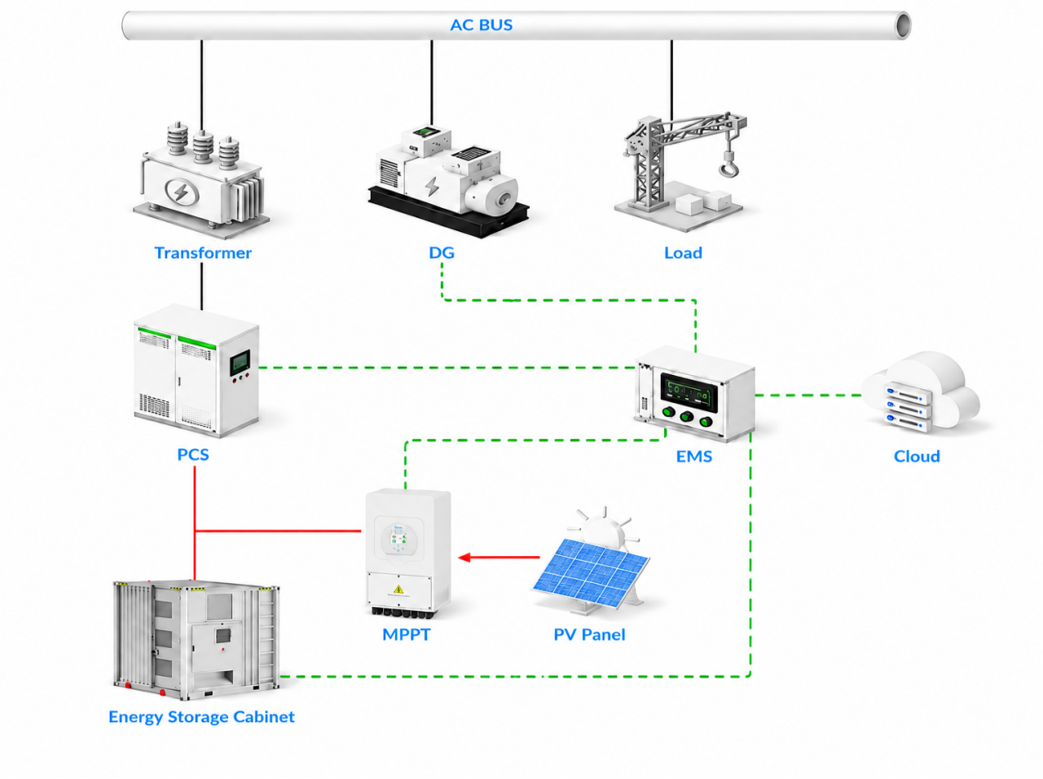

The storage system cooperates with the diesel generator – providing peak power support during high demand and absorbing surplus energy during light loads – to maximise overall system efficiency.
High Reliability with Uninterrupted Power
The diesel and storage systems serve as mutual backups. In the event of a fault or during maintenance of either system, the other seamlessly takes over the load, ensuring continuous power to critical equipment.
Noise Reduction for Better Working Conditions
Under light loads, the diesel engine automatically shuts down and the system switches to battery‑only mode, enabling quiet operation. This significantly improves the on‑site working environment and extends the diesel engine’s service life.
Parameter | HPE150 | HPE250 | HPE500 |
Diesel Generator Input | |||
Power rating (kVA) | 100–300 | 100–300 | 100–500 |
Input voltage / frequency | AC 400 V, 50/60 Hz | AC 400 V, 50/60 Hz | AC 400 V, 50/60 Hz |
Communication interface | RS485 / Ethernet | RS485 / Ethernet | RS485 / Ethernet |
DG controller | With synchronization and power control functions | With synchronization and power control functions | With synchronization and power control functions |
PV Input | |||
Coupling method | DC‑coupled | DC‑coupled | DC‑coupled |
Power rating (kVA) | 100–200 | 100–200 | 100–400 |
Communication interface | RS485 | RS485 | RS485 |
Battery System | |||
Rated energy capacity (kWh) | 150–300 | 200–400 | 400–600 |
Thermal management | Air‑cooled (A/C) | Liquid‑cooled | Liquid‑cooled |
Fire suppression system | Temperature + smoke detection + aerosol extinguishing | Temperature + smoke detection + aerosol extinguishing | Temperature + smoke detection + aerosol extinguishing |
AC Output – Grid‑connected Side | |||
Output power (kW) | 150 | 250 | 500 |
Rated voltage (V) | 400 (3L/N/PE) | 400 (3L/N/PE) | 400 (3L/N/PE) |
Frequency (Hz) | 50/60 | 50/60 | 50/60 |
Output current (A) | 215 | 360 | 720 |
Power factor | –1 to +1 | –1 to +1 | –1 to +1 |
Max. total harmonic distortion (THD) | <3% @ rated power | <3% @ rated power | <3% @ rated power |
AC Output – Off‑grid (Island) Side | |||
Output power (kW) | 150 | 250 | 500 |
Overload capability | 1.1× continuous;1.2× for 90 s;1.3× for 20 s | 1.1× continuous;1.2× for 90 s;1.3× for 20 s | 1.1× continuous;1.2× for 90 s;1.3× for 20 s |
Output current (A) | 215 | 360 | 720 |
Rated voltage (V) | 400 (3L/N/PE) | 400 (3L/N/PE) | 400 (3L/N/PE) |
Frequency (Hz) | 50/60 | 50/60 | 50/60 |
General Specifications | |||
Cabinet ingress protection (IP) | IP54 | IP54 | IP54 |
Corrosion protection level (ISO 12944) | C4 | C4 | C4 |
Operating temperature range | –20 °C to +55 °C | –20 °C to +55 °C | –20 °C to +55 °C |
Storage temperature range | –20 °C to +50 °C | –20 °C to +50 °C | –20 °C to +50 °C |
Relative humidity | 0–95% RH (non‑condensing) | 0–95% RH (non‑condensing) | 0–95% RH (non‑condensing) |
Altitude (above sea level) | ≤3000 m | ≤3000 m | ≤3000 m |
Dimensions (L × W × H) (mm) | 2800 × 2300 × 2400 | 2800 × 2300 × 2400 | 3600 × 2300 × 2400 |
