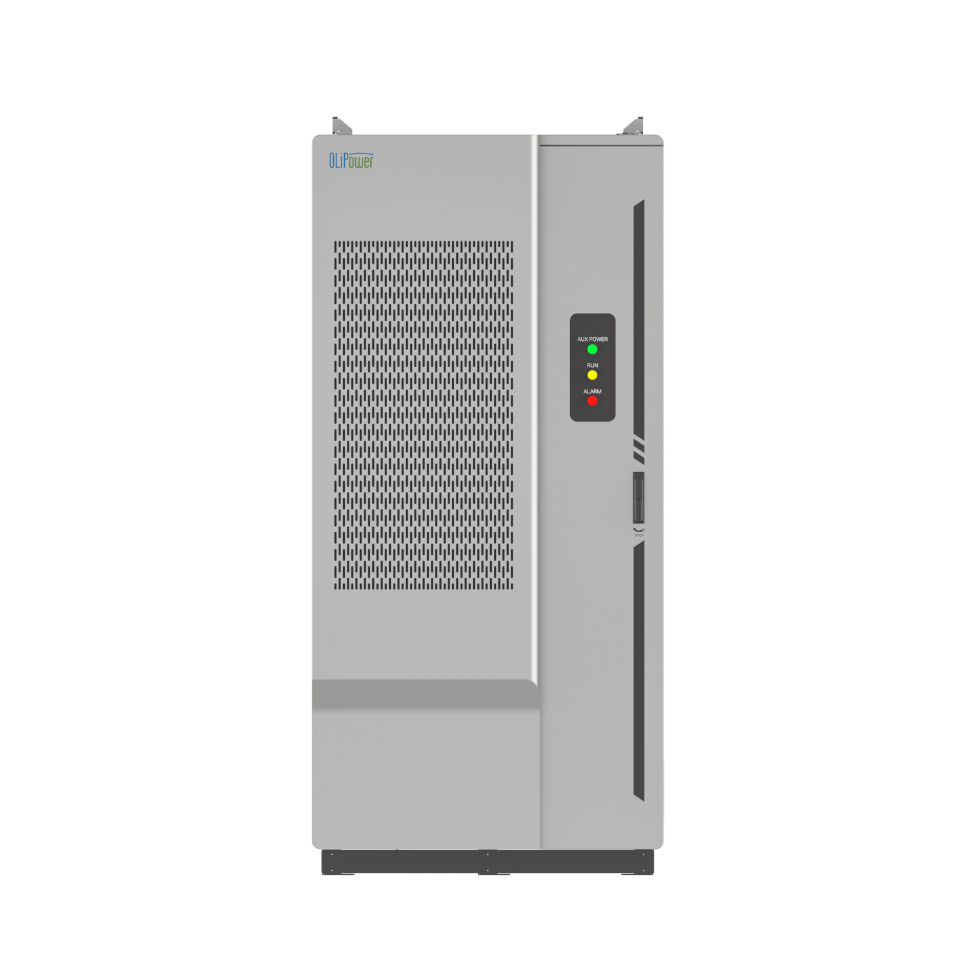

OLP-HEIB 125kW/257kWh Air-Cooled Hybrid Energy Storage Integrated Cabinet

Name: 125kW/257kWh Hybrid ESS Cabinet
Brand: OLiPower
Availability: InStock

The OLP-HEIB series is a grid-connected and off-grid hybrid energy storage solution engineered by OLiPower for commercial and industrial applications in areas with limited or no grid access, as well as critical backup power needs. When integrated with PV systems and diesel generators, it forms an intelligent microgrid that delivers continuous, reliable green power.

Contact Us

Seamless On-Grid & Off-Grid Operation

Supports both grid-connected and island modes with automatic seamless transition, ensuring uninterrupted power supply for critical loads during grid disturbances.

Peak Shaving & Load Shifting

Reduces electricity costs by charging during low-tariff periods and discharging during peak hours, enabling effective peak-valley arbitrage and demand charge management.

Renewable Energy Integration

Smooths solar and wind power fluctuations, maximizing renewable self-consumption and providing dispatchable power during peak demand periods.

Grid Support & Frequency Regulation

Provides dynamic grid support including voltage regulation and frequency response, enhancing overall grid stability and resilience.

Specifications

Specifications of 50kW/111kWh Hybrid ESS Cabinet

Model		OLP-HEIB-V541_E111_P50-AO
Battery System	Cell Type	LFP
	Cell Parameter	3.2V/314Ah
	Cell Configuration	1P256S
	Rated Energy	257kWh
	Rated Voltage	819.2V
	Voltage Range	716.8 ~ 934.4V
	Rated Current	157A
	Max. Current	200A
PV Input	Max. Input Power	100kW
	Start-up Voltage	250V
	MPPT Voltage Range	250-1000V
	Numbers of MPPT	4
	Numbers of DC inputs per MPPT	2
	Max. Input Current	80A*2
On-grid	Rated Power	125kW
	Rated Voltage	3L/N/PE, 220/380V; 120/240V; 240/415V
	Max. Current	200A
	Frequency	50/60Hz
	Power Factor	0.8leading ~ 0.8lagging
	Harmonic	<3% @ Rated Power
Off-Grid	Rated Power	125kW
	Rated Voltage	3L/N/PE, 220/380V; 120/240V; 240/415V
	Max. Current	200A
	Frequency	50/60Hz
	On/Off Grid Switch Time	<20ms
	Harmonic	<3% @ linear load
System Parameters	Thermal Management System	Air-conditioner
	Fire Suppression System	Heat/Smoke Detector, Aerosol
	Communication	LAN/WiFi/4G
	Generator Connection	Supported, Multifunction Dry Contact Relay
	Security Protection	Access Control System, Waterlogging Sensor, Fire Protection System
	Dimension (WDH)	Cabinet: 70013132200(mm); Hybrid Storage Inverter: 760290900(mm)
	Weight	About 1700kg
	IP Rating	Cabinet:IP54; Hybrid Storage Inverter:IP55
	Operating Temperature	-20 ~ 50℃
	Humidity	0~95%RH (No condensation)
	Latitude	≤3000m
	Certification	UN38.3, IEC62619, IEC61000
